• Wheels, 17" x 8" (43.2 cm x 20.3 cm) Ultra Silver painted steel
• Tires, 255/70R17 all-season, blackwall
• Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumpers, front, Black (semi-gloss)
• Bumpers, rear, Black (semi-gloss)
• CornerStep, rear bumper
• Recovery hooks, front, frame-mounted, black (Included with 4WD models or on 2WD models with (PQA) WT Safety Package. Available free flow on 2WD models.)
• Cargo tie downs (12), fixed rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Grille (Black bars and mesh inserts.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Taillamps, with incandescent tail, stop and reverse lights
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package is ordered.) (Upgraded to (QT5) EZ Lift power lock and release tailgate when (ZLQ) WT Fleet Convenience Package or (PCV) WT Convenience Package is ordered.)
• Tailgate, gate function manual, no EZ Lift (Deleted with (ZW9) pickup bed delete.)

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Apple CarPlay and Android Auto capable.
• Audio system feature, 2-speaker system (Requires Regular Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system

• Seats, front 40/20/40 split-bench
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Windows, manual (Requires Regular Cab model.)
• Door locks, manual (Requires Regular Cab model.)
• Power outlet, front auxiliary, 12-volt
• USB port, located on instrument panel
• Air conditioning, single-zone
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera (Deleted with (ZW9) pickup bed delete.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

ENGINE, 4.3L ECOTEC3 V6

• with Active Fuel Management
• (285 hp [212 kW] @ 5300 rpm
• 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)

• DURABED PICKUP BED (STD)
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• AUDIO SYSTEM CHEVROLET INFOTAINMENT 3 SYSTEM 7 diagonal color touchscreen AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices voice command pass-through to phone Apple CarPlay and Android Auto capable. (STD)
• SUMMIT WHITE
• SEATS FRONT 40/20/40 SPLIT-BENCH (STD)
• TRAILERING PACKAGE includes trailer hitch 7-pin and 4-pin connectors and (CTT) Hitch Guidance
• LICENSE PLATE KIT FRONT
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRE SPARE 255/70R17 ALL-SEASON BLACKWALL (STD)
• WHEELS 17 X 8 (43.2 CM X 20.3 CM) ULTRA SILVER PAINTED STEEL (STD)
• JET BLACK CLOTH SEAT TRIM
• GVWR 6900 LBS. (3130 KG) (STD)
• TIRES 255/70R17 ALL-SEASON BLACKWALL (STD)
• CHEVYTEC SPRAY-ON BEDLINER BLACK WITH CHEVROLET LOGO (does not include spray-on liner on tailgate due to Black composite inner panel)
• HITCH GUIDANCE
• ENGINE 4.3L ECOTEC3 V6 with Active Fuel Management (285 hp [212 kW] @ 5300 rpm 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Daytime Running Lights
• AM/FM Stereo
• Bluetooth® Connection
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Power Outlet
• MP3 Capability
• Auxiliary Audio Input
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2792
• Curb Weight - Rear (lbs): 1790
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 770
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1900
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.6
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28.3
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 139.56
• Length, Overall (in): 229.5
• Width, Max w/o mirrors (in): 81.14
• Height, Overall (in): 75.63
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.22
• Ground Clearance, Rear (in): 8.22
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.18
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 89.1
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary

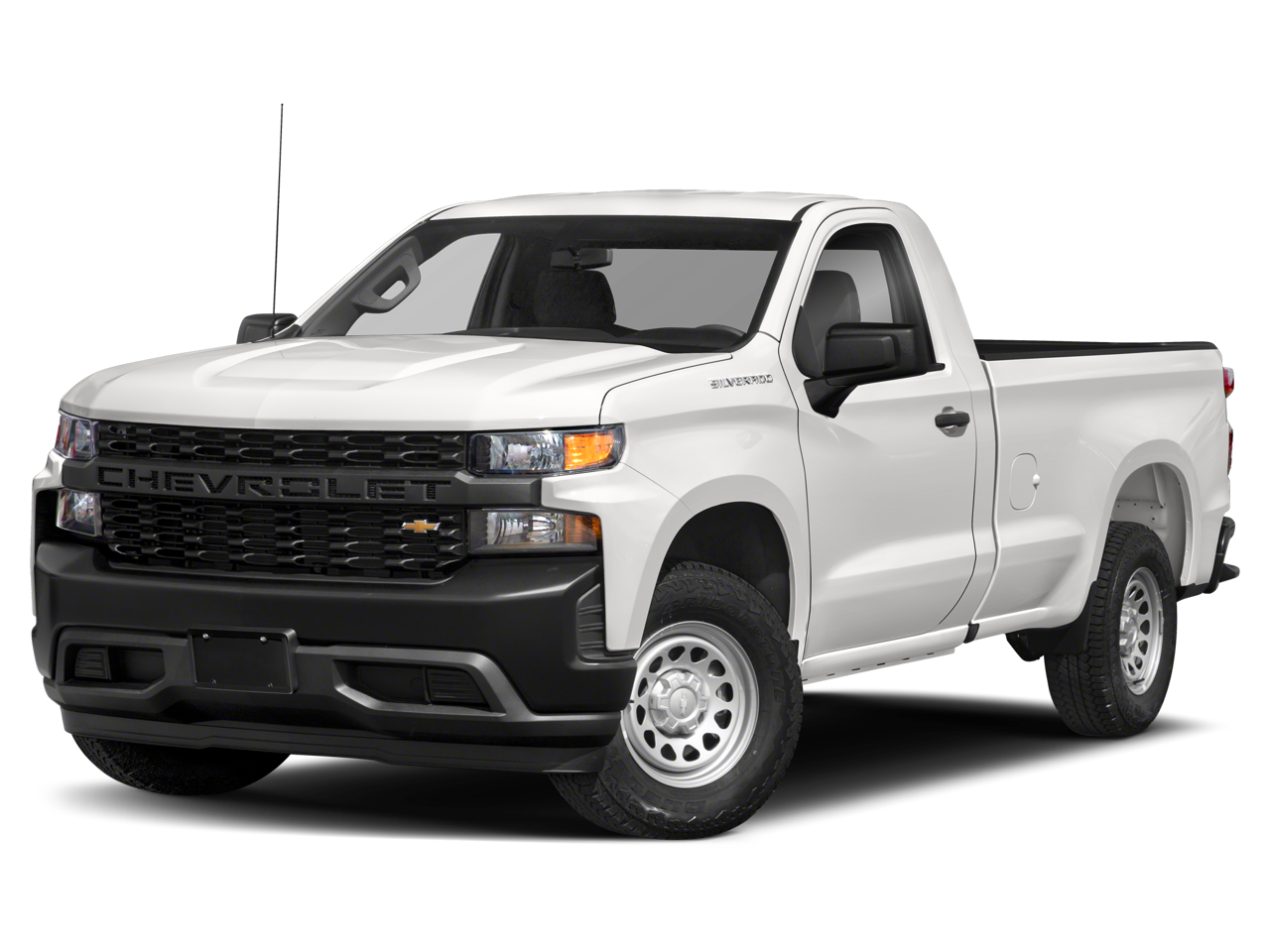

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Regular Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
